What is the maximum pressure for a pneumatic punch press?

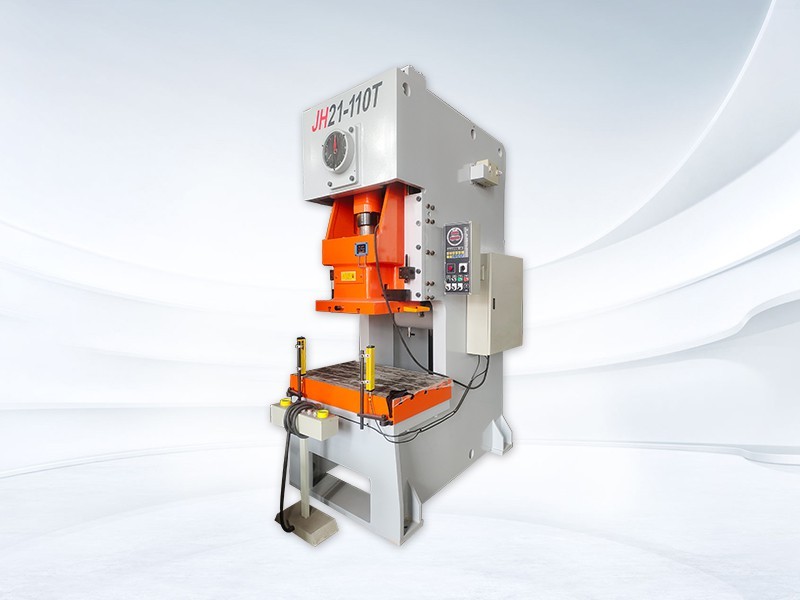

Pneumatic punch press is a mechanical equipment that uses compressed air as a power source to drive the slider for stamping operations through the reciprocating motion of the cylinder. The maximum pressure refers to the maximum punching force that the slider of the pneumatic punch can generate during operation, usually expressed in kilonewtons (kN) or tons (t). This parameter directly reflects the processing capability of the pneumatic punch press and is one of the important considerations when choosing a pneumatic punch press.

1. Factors affecting the maximum pressure of pneumatic punch presss

（1） Cylinder parameters

The cylinder is the core power component of the pneumatic punch press, and its diameter and stroke have a decisive impact on the maximum pressure. The larger the diameter of the cylinder, the greater the thrust that can be generated at the same air pressure, thereby allowing the slider to obtain greater thrust force. For example, a cylinder with a diameter of 200mm and a cylinder with a diameter of 150mm produce significantly greater thrust than the latter under the same air pressure. The cylinder stroke can also affect the maximum pressure to a certain extent. A longer stroke can provide more sustained force output during the stamping process, but a longer stroke may increase the loss of pressure during transmission.

（2） Air pressure magnitude
Air pressure is the power source that drives the movement of the cylinder. The higher the air pressure, the greater the thrust generated by the cylinder, and the maximum pressure of the pneumatic punch press is correspondingly increased. Generally speaking, the working pressure of pneumatic punch presss is between 0.4-0.8MPa, and different models of pneumatic punch presss may have different requirements for air pressure. When the air pressure reaches the rated upper limit of the equipment, the pneumatic punch can exert the maximum punching force. But if the air pressure is too high, it may cause damage to the seals, cylinders and other components of the equipment, affecting the service life of the equipment; If the air pressure is too low, it cannot reach the maximum pressure of the equipment, resulting in poor stamping effect.
（3） Mechanical Structure and Transmission Efficiency

The mechanical structure of pneumatic punch presss, including the design and manufacturing accuracy of components such as connecting rods and crankshafts, will affect the transmission efficiency. A reasonable mechanical structure can reduce the loss of force during transmission, allowing more energy to be converted into the impact force of the slider. The higher the transmission efficiency, the greater the maximum pressure that a pneumatic punch can generate under the same air pressure and cylinder parameters. For example, using high-precision rolling bearings and optimized connecting rod design can reduce frictional resistance and improve transmission efficiency.

2. The maximum pressure range of different types of pneumatic punch presss

（1） Small pneumatic punch press
Small pneumatic punch presss are usually suitable for some lightweight stamping operations, such as punching and cutting electronic components and small hardware parts. The structure of this type of pneumatic punch press is relatively simple, with a small cylinder diameter, generally between 50-100mm, and a working pressure of 0.4-0.6MPa. Its maximum pressure is generally between 10-50kN (about 1-5 tons), which can meet some production needs with low pressure requirements for hedging.
（2） Medium sized pneumatic punch press
Medium sized pneumatic punch presss have a wide range of applications and can be used for stamping medium-sized and high-strength parts such as automotive components and home appliance casings. The cylinder diameter is usually between 100-200mm, and the working pressure is between 0.5-0.7MPa. The maximum pressure is generally between 50-200kN (about 5-20 tons), which can adapt to stamping of various materials and thicknesses.
（3） Large pneumatic punch press

Large pneumatic punch presss are mainly used for stamping and forming large metal components, such as large sheet metal stamping in shipbuilding, aerospace and other fields. The cylinder diameter of this type of pneumatic punch press is relatively large, exceeding 200mm, and the working pressure can reach 0.6-0.8MPa. Its maximum pressure is generally above 200kN (about 20 tons or more), and the maximum pressure of some large pneumatic punch presss can even reach thousands of kilonewtons, which can complete high-strength and large-sized stamping tasks.

3. Table of parameters related to maximum pressure of pneumatic punch press

Pneumatic Punch Type	Cylinder Diameter (mm)	Working Air Pressure (MPa)	Maximum Pressure (kN)	Maximum Pressure (tons)
Small Pneumatic Punch	50 - 100	0.4 - 0.6	10 - 50	1 - 5
Medium Pneumatic Punch	100 - 200	0.5 - 0.7	50 - 200	5 - 20
Large Pneumatic Punch	> 200	0.6 - 0.8	> 200	> 20

4. The relationship between maximum pressure and the application of pneumatic punch presss

The maximum pressure of a pneumatic punch determines the type and thickness of materials it can process. For some thinner and softer materials, such as aluminum plates, copper plates, etc., the maximum pressure of a small pneumatic punch press can meet the stamping requirements; For thicker and harder steel, it is necessary to use medium or large pneumatic punch presss to ensure sufficient punching force can be generated to press the material into shape. When choosing a pneumatic punch press, it is necessary to accurately select equipment with the appropriate maximum pressure according to the actual processing needs, which can meet production requirements and avoid equipment waste or inability to complete processing tasks.
The maximum pressure of a pneumatic punch press is a comprehensive parameter that is influenced by various factors such as cylinder parameters, air pressure, and mechanical structure. Different types of pneumatic punch presss have different maximum pressure ranges. In practical applications, the maximum pressure parameters of pneumatic punch presss should be reasonably selected based on the characteristics of the processing materials and processing requirements.
